| Brand Name : | Mitsubishi |
| Model Number : | Q01CPU |
| Certification : | CE |
| Price : | USD300~320/pcs |
| Payment Terms : | T/T |
| Supply Ability : | 1000PCS/week |
| Delivery Time : | in stock |

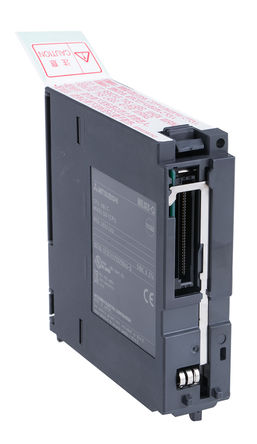

Q01CPU Mitsubishi MELSEC Q PLC CPU Computer, Operating Panel Interface, 56 kB Program Capacity, 5 V dc
Cost effective, powerful processor ideal for local and remote
machine control, remote I/O networking of conveyors, pump control
or any other PLC application. The processors can control up 1024
local I/O and store 8ksteps of program (Q00CPU) and 14k steps
(Q01CPU). Both have 249 available instructions to allow easy and
flexible development of control programs.
PID instructions
Support for floating-point numbers
Networking capability
Multiple CPU configurations
RS232 equipped for programming and monitoring from PC or operating
panel
Integrated flash ROMs for memory operation without additional
memory cards
The Mitsubishi Q Series is highly flexible. It can be a single or multi processor solution, with up to four CPUs installed on the same backplane. Users can also opt to swap PLC CPUs with motion control CPUs or even add a PC directly (as an intregal part) to the PLC backplane. Q Series can meet modern process challenges by offering an “Automation Rich Environment” from the combination of advanced PLC technology with Motion and a PC as one seamless solution with no networking requirement between them. The Q Series replaces the Mitsubishi A series of PLCs.
Easy to set up and to expand a system
Fast processing speeds and large memory capacity
Uses Windows based GX software
| MELSEC Q Series | ||
| Number of I/O | 2048 | |
| Manufacturer Series | MELSEC Q | |
| Input Type | Analogue, Digital | |
| Voltage Category | 5 V dc | |
| Output Type | Analogue, Digital | |
| Communication Port Type | RS232C | |
| Program Capacity | 56 kB | |
| Programming Interface | Computer, Operating Panel | |
| Total Memory Available | 94 kB | |
| Mounting Type | DIN Rail | |
| Maximum Inputs/Outputs | 8192 | |
| Number of Communication Ports | 1 | |
| Width | 27.4mm | |
| Battery Backup | Yes | |
| Scan Time | 0.1 μs | |
| Length | 89.3mm | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 89.3 x 27.4 x 98 mm | |
| Depth | 98mm | |
| Minimum Operating Temperature | 0°C |
|
|
