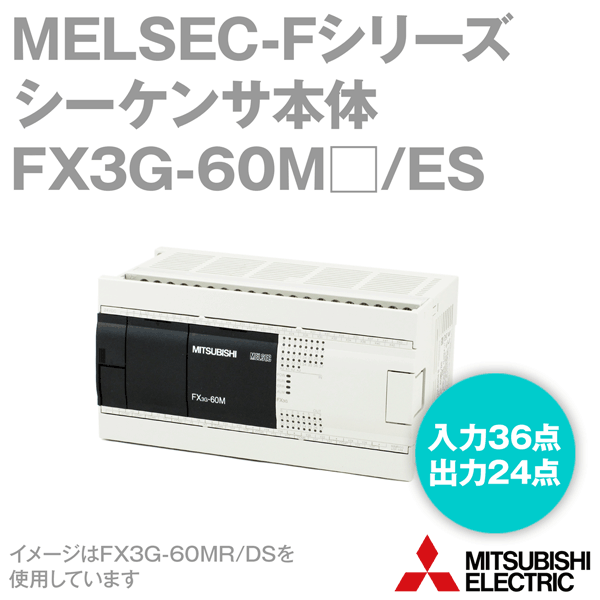

Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage)

Shenzhen Hunt Electronics Co., Ltd
Contact Now
    Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers

    Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers
    • Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers
    • Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers
    • Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers
    • Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers
    • Buy cheap Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage) from wholesalers

    Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage)

    Ask Lasest Price
    Brand Name : MITSUBISHI
    Model Number : FX3G-60MR-ES-A
    Certification : CE
    Price : USD210~245/PCS
    Payment Terms : T/T
    Supply Ability : 1000PCS/per
    Delivery Time : in stock
    • Product Details
    • Company Profile

    Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage)

    Mitsubishi FX3G FX3G-60MR-ES-A (AC power supply and DC input 36 x Input, 24 x Output, 100 → 240 V ac Supply Voltage)

    • Part Number: FX3G-60MR-ES-A
    • PLC Series: FX3G
    • Manufacturer: Mitsubishi
    • Our part number: FX3G60MRESA
    • Number of Digital Inputs: 36
    • Input Voltage: 24 VDC Sink/Source
    • Number of Digital Outputs: 24
    • Output Type: Relay
    • Supply Voltage: 100-240 VAC
    • Height (mm): 90
    • Width (mm): 175
    • Depth (mm): 86
    • Weight (kg): 0.85

    Information about this range

    • Expandable compact PLC
    • Available as AC or DC powered
    • DC models have variable voltage,12 to 24 VDC
    • Expandable for up to 256 inputs/outputs
    • Available with relay or transistor outputs
    • High speed inputs for fast counting tasks
    • LEDs for indicating input & output status
    • Integrated USB interface
    • Two integrated serial interfaces
    • A 2nd RS485/422/232 communications interface can be added
    • Can be mounted on DIN rail or a flat surface
    • Password access protection
    • 32,000 step program EEPROM memory
    • Detachable terminal blocks for all units
    • Slot for memory cassettes
    • Integrated real time clock
    • Integrated positioning control
    • Exchangable interface & I/O adapter boards
    • I/O,ADP & special function modules available
    • User friendly programming systems


    Specifications
    Not what you’re looking for? Select the attributes you require, then click the button below
    Manufacturer SeriesFX3G Series
    Supply Voltage100 → 240 V ac
    Output TypeRelay
    Number of Outputs24
    Number of Inputs36
    Input TypeSink/Source
    Display IncludedNo
    For Use WithMELSEC FX3G Series
    Expansion AvailableYes
    Output Current8 A
    Mounting TypeDIN Rail
    Scan Time0.21 μs, 0.42 μs
    Minimum Operating Temperature0°C
    Program Capacity32000 Steps
    Length175mm
    Operating ModeProgram, Run
    Programming Language UsedLadder Logic
    Maximum Operating Temperature+50°C
    Programming InterfaceComputer, HMI
    Width90mm
    Total Memory Available32000 Steps
    Depth86mm

    FX3G-60MR/es
    FX3G-60MT/es

    [Form name]
     FX3G-60MR/ES (relay)
     FX3G-60MT/ES (transistor (sink))
    [Power] AC100 ~ 240V
    [Input]
     36 (40) point *
     DC24V
     7mA/5mA
     Sink / source input
     7mA/5mA
    [Output]
     24 points
     [Relay]
     2/1 point (8 A/4 respect)
     AC250V
     DC30V
     [Transistor]
     ES: sink
     0.5/1 point (0.8 A/4 point)
     DC5 to 30 V

    *: Input X044-X047 (4 points) is the disk number.
